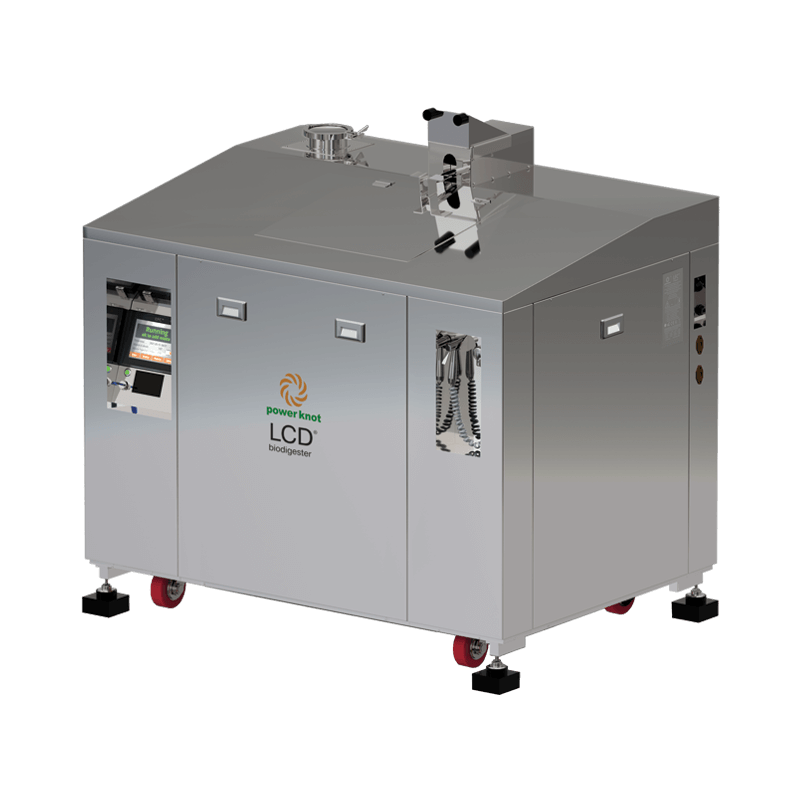

The LCD-500 is a fully enclosed automatic biodigester that safely disposes of 79–680 kg (175–1500 lb) of organic waste each 24 hours with no noise or odor.

Features of the LCD-500 biodigester

    To view the spinner model:

  • Use your left mouse button to spin the model.
  • Use your right mouse button to move it.
  • Use your mouse wheel to zoom in or out.
  • Click on a number to see details of that feature.

Mobile Users

Click here for AR biogester

Technical Specs

Capacity per Day

79–680 kg (175–1500 lb)

Construction

All stainless steel (chassis, side panels, drum, shaft, arms, paddle, and load cells)

Dimensions

190 x 120 x 162 cm (76 x 48 x 65 in)

Warranty

3 years on all parts and components

AC Supply

208, 250, 380, 400 V, 50 to 60 Hz
15 A, 3-phase

User Interface

22 mm 3-color LED
7″ touchscreen with 65k colors

Certifications

UL, CSA, RoHS, and CE certified

Fill out the form below to download the LCD-500 cut sheet.
