BCG-315

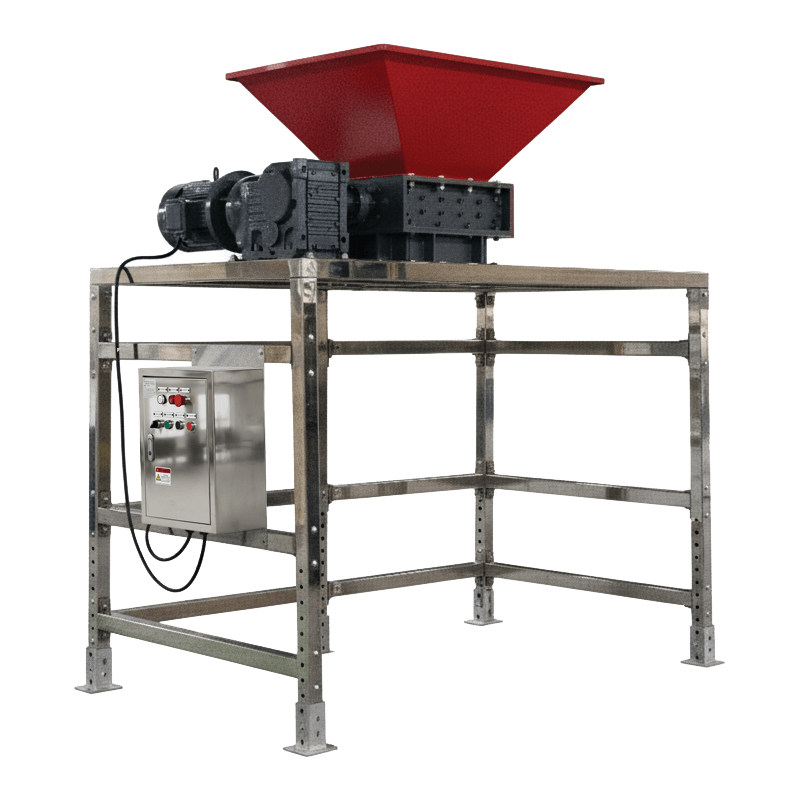

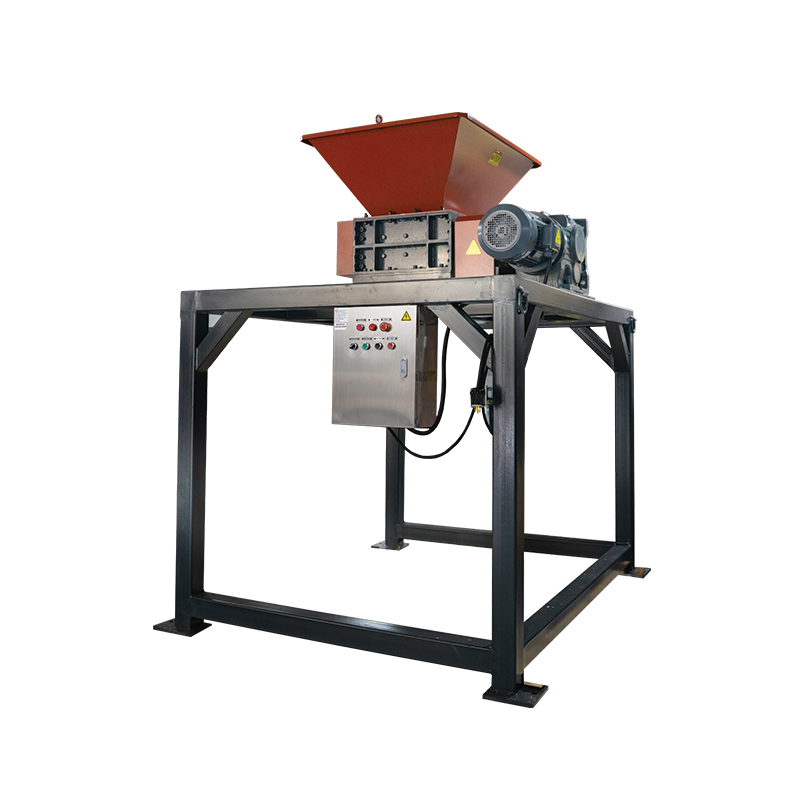

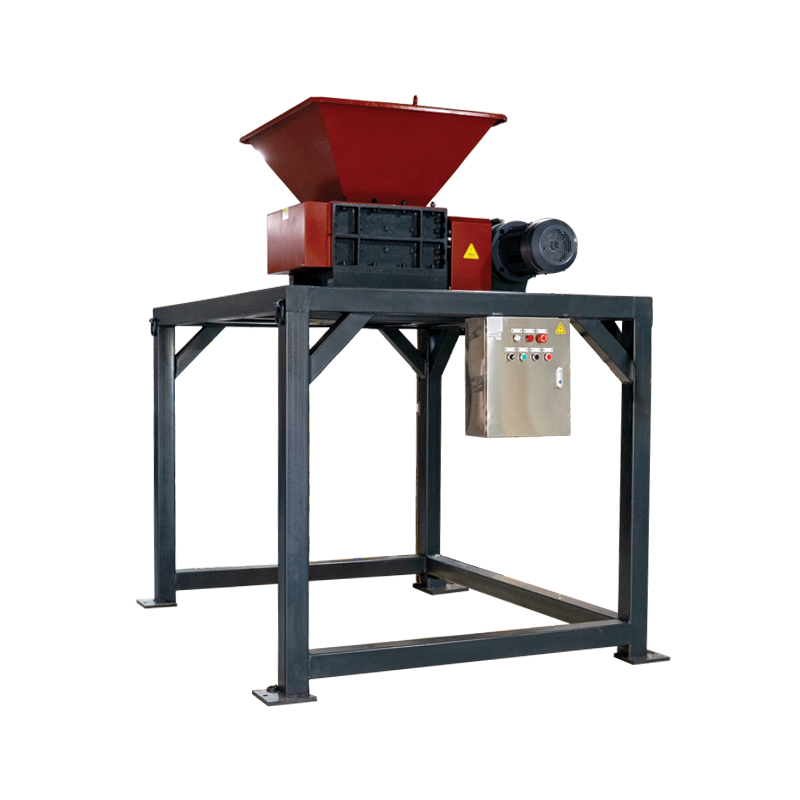

The Power Knot BCG-315 grinder allows you to grind bones or other materials before disposal.

Features of the BCG-315 grinder

To view the spinner model:
Use your left mouse button to spin the model.
Use your right mouse button to move it.
Use your mouse wheel to zoom in or out.
Click on a number to see details of that feature.

Mobile Users
Click here for AR BCG-315 Grinder
Benefits

Benefits

  • Grinds inputs into coarse particles for easy processing
  • Modular frame for flexible installation
  • Reduces waste volume and disposal costs
  • Enhances recycling by converting bone waste into usable byproducts

Features

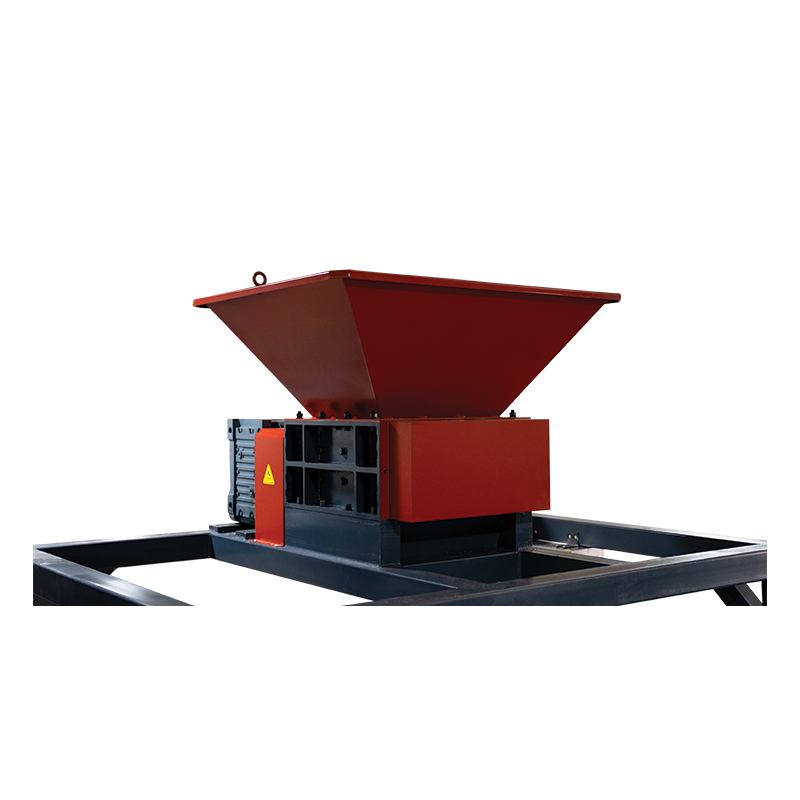

  • Custom hopper designed for safe and ergonomic loading
  • Optional adjustable legs for height customization and floor anchoring
  • Wall-mounted control box with emergency stop for operator safety
  • Motor can be reversed to clear any blockage
Features

This heavy-duty grinder is engineered for facilities that require high-capacity processing of organic materials prior to digestion, composting, or recycling.

Technical Specs

Technical Specs

Construction
  • Custom powder coated hopper
  • Heat treated knives (HRC 13)
Capacity
  • 180 kg/h (400 lb/h)
  • Largest bone: 400 mm (16”)
Power
  • 11 kW
  • 208 V: 187 V to 230 V, 60 Hz or 400 V: 360 V to 440 V, 50 Hz
Fill out the form below for the BCG-315 data sheet.
