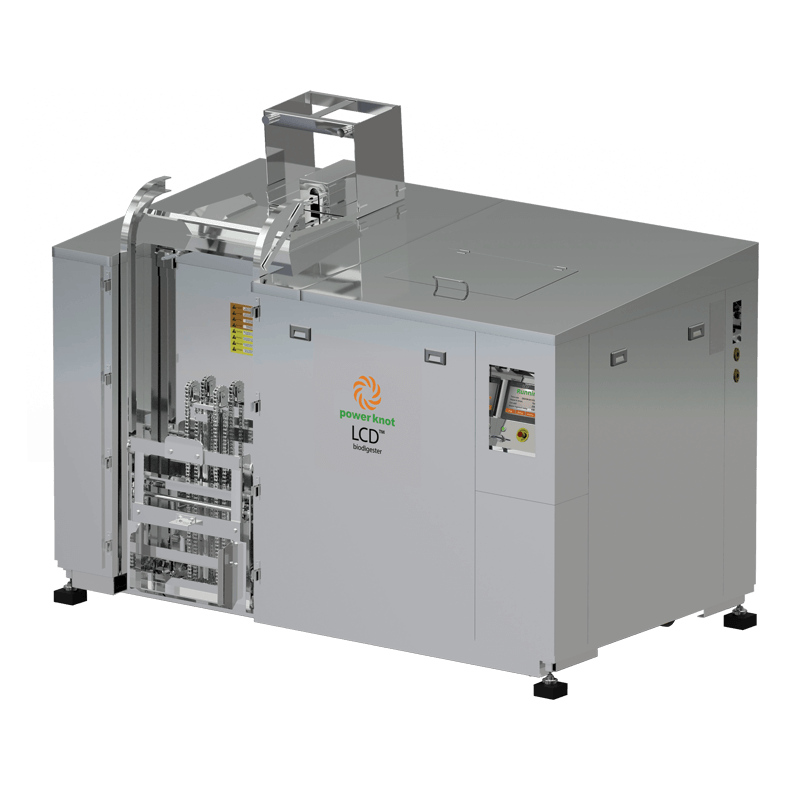

LCD-1000 is fully enclosed automatic biodigester with a built-in bin tipper.

Features of the LCD-1000 biodigester

To view the spinner model:

  • Use your left mouse button to spin the model.
  • Use your right mouse button to move it.
  • Use your mouse wheel to zoom in or out.
  • Click on a number to see details of that feature.

Mobile Users

Click here for AR biogester

Technical Specs

Capacity per Day

159–1361 kg (350–3000 lb)

Construction

All stainless steel (chassis, side panels, drum, shaft, arms, paddles, and load cells).

Dimensions

260 x 141 x 174 cm (103 x 57 x 72 in)

Bin Lifter

Maximum lift: 70 kg (155 lb)
Models accept: ANSI and EN

Warranty

3 years on all parts and components

AC Supply

208, 250, 380, 400 V, 50 to 60 Hz

15 A 3-phase

User Interface

22 mm 3-color LED
7″ touchscreen with 65k colors

Certifications

UL, CSA, RoHS, and CE certified

Fill out the form below to download the LCD-1000 cut sheet.
